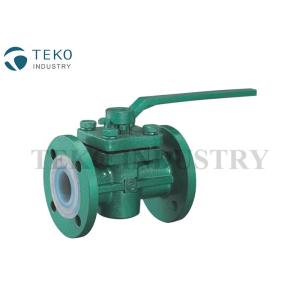

SLEEVE TYPE TWO WAY FLUORINE FULL LINED PTFE LINED PLUG VALE
ABOUT PFA
PFA’s temperature arranges is up to 180 degree. And it is easy to module and produced.
SPECIFICATIONS
| PTFE LINING PLUG VALVE | |
| BODY | CS ASTMA 216 GE WCB/ASTMA-351-CF8/ASTMA 351 –CF8M+PFA/FEP Liner |
| PLUG | CS ASTMA 216 GE WCB/ASTMA-351-CF8/ASTMA 351 –CF8M+PFA/FEP Liner |
| WEDGE RING | PTFE |
| DIAPHRAGM | PTFE |
| DIAPHRAGM | SS304 |
| THRUST COLLAR | S.S./C.S. |
| TOP CAP | CS ASTMA 216 GE WCB/ASTMA-351-CF8/ASTMA 351 –CF8M+PFA/FEP Liner |
| TOP CAP CONNECTOR BLOT | CARBON STEEL B7/SS |
| TOP CAP NUTS | CARBON STEEL 2H/SS |
| ADJUSTER | S.S./C.S. |
| ADJUSTER FASTENERS | CARBON STEEL B7/S.S. |
| STOP COLLAR | C.S./SS |
| HANDLE HUB | S.S./C.S. |
| OPERATION : | CS/SS HANDLE/MANUALLY GEAR OPERATION/ELECTRIC OR PNEUMATIC OPERATION |
| Sizes: | ½"(15 NB) TO 10"(250 NB) |
| Pressure Class | ANSI CLASS 150/ PN 10/ PN 16 |
| Working Temperature | -30 degree to 180 degree |
| Maximum working Pressure | 275 psi |
| Flanged Drilled | Flange ASME B16.5 CLASS 150 RF/ DIN STANDARD/PN 10/PN 16/ PN 40 |
| HYDRAULIC TEST PRESSURE | AS PER SUITABLE CLASS 150#, PN 10, PN 16, PN 40 ETC. |
| Spark Test(Pinhole Test) | 15~20 KV DC |
